AMF Panel

Experience the excellence of our AMF Panel, crafted by a manufacturer and supplier with over 37.0 years of expertise, bringing you the most supreme and reliable solutions for power management. Designed to cater to applications ranging from 10 to 320 KVA AMF Panels with Full Manual Changeover and Battery Charger, as well as 400 to 1250 KVA AMF Panels, our products are in top demand across All India for their superlative quality and performance. Featuring automatic and manual switching capabilities, exceptional durability, integrated battery charging systems, prime efficiency in operation, and a user-friendly interface, these panels provide unmatched reliability and convenience. Engineered to be your premier choice for power backup solutions, our AMF Panels lead the market in both design and performance. Buy our highly advanced panels today and ensure uninterrupted power supply with products setting the top benchmark in the industry.

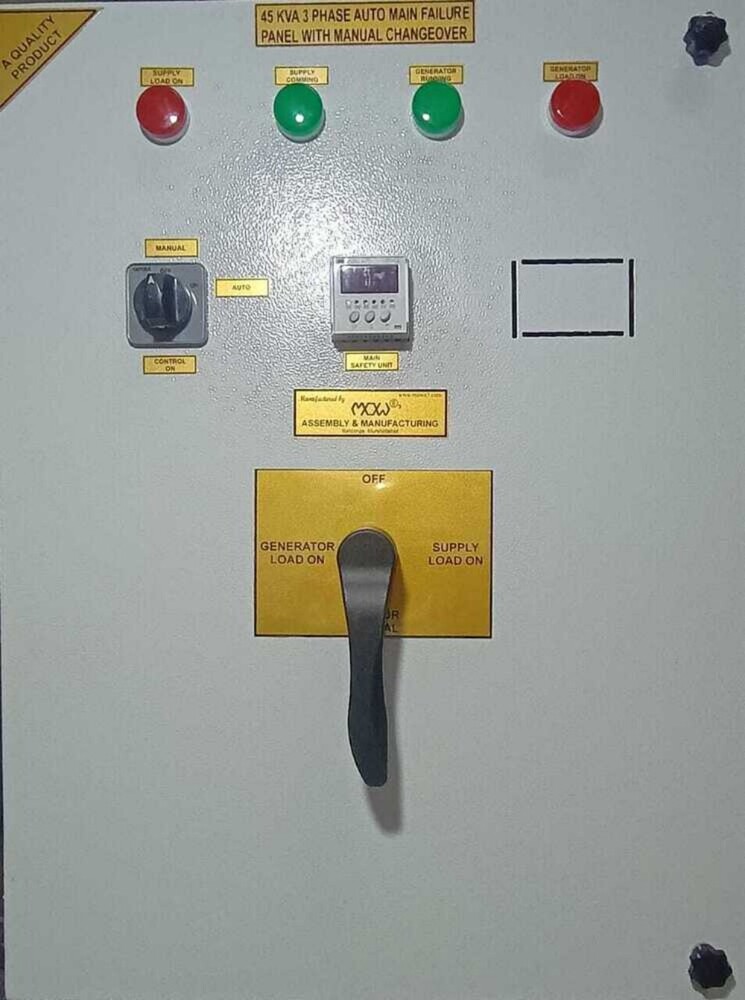

10 to 320 kva AMF Panel With Full Manual Changeover

MOQ : 1 Piece

Application
Industrial / Commercial Power Backup

Base Material
Mild Steel

Cabinet Material
CRCA Sheet Steel

Components
MCB, MCCB, Contactors, Relays, Volt/Ammeters, Indicating Lamps

Connectivity Type
Wired

Control System
Auto Mains Failure (AMF) with Manual Changeover

Cooling System
Natural Air Cooling

Cover Material
Other, Powder Coated Mild Steel

Current Rating
10A - 1000A

Dimension (L*W*H)
As per kVA Capacity (Custom sizes)

Display Type
Other, Analog / Digital (Optional)

Features
AMF Automation, Manual Changeover, LED Indication, Heavy Duty Construction, Easy Installation

Frequency (MHz)
50 Hz

IP Rating
Other, IP54 / IP55

Material
Other, Mild Steel (MS)

Maximum Output Current
1000A

Operating Voltage
415V AC

Panel Type
Floor Mounted

Product Type
Other, AMF Panel with Full Manual Changeover

Protection Class
Class I

Protection Level
Other, IP54 / IP55

Rated Current
10 to 320 kVA

Rated Insulation Voltage
690V

Rated Operation Voltage
415V

Rated Voltage
415V AC

Standard
IEC 61439 / IS 8623

Surface Color
Other, Grey

Surface Finish
Powder Coated

Thickness
2 mm (Panel body)

Way
3 Way

Know more

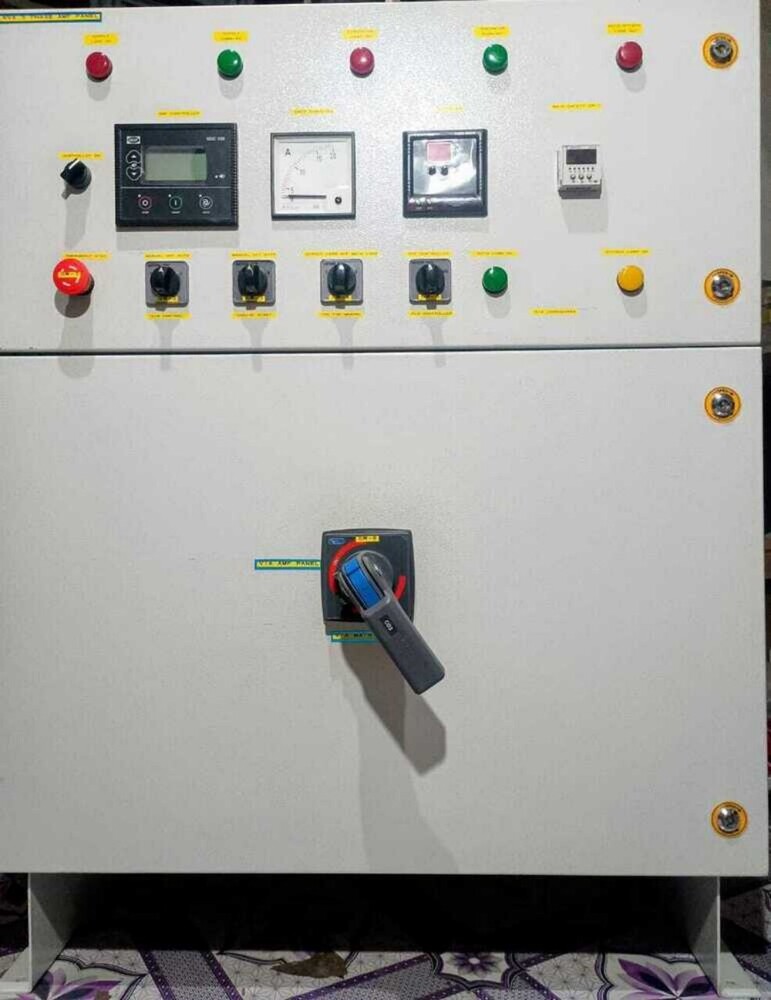

10 to 320 kva AMF Panel

MOQ : 1 Piece

Application
DG Set Automation for Power Back up

Base Material
Mild Steel

Cabinet Material
CRCA Sheet

Components
Contactors, MCCBs, Relays, Metering Devices, Timers

Connectivity Type
Wired

Control System
Microprocessor Based Automatic Controller

Cooling System
Natural air cooled

Cover Material
Other, Powder Coated Steel

Current Rating
Up to 630A

Dimension (L*W*H)
Customized as per requirement

Display Type
Other, Digital / LED / LCD

Features
Auto/Manual Start-Stop, Generator Protection, Mains Failure Protection, Audible Alarm, Phase Reversal Protection

Frequency (MHz)
50 Hz

IP Rating
Other, IP42 / IP54

Material
Other, Mild Steel / CRCA Sheet

Maximum Output Current
630A

Operating Voltage
415V AC

Panel Type
Floor Mounted

Product Type
Other, Automatic Mains Failure (AMF) Panel

Protection Class
Class 1

Protection Level
Other, IP42 / IP54

Rated Current
10 to 320 kVA

Rated Insulation Voltage
690V

Rated Operation Voltage
415V

Rated Voltage
415V AC

Standard
IEC 61439, IS 8623

Surface Color
Other, Siemens Grey / RAL 7032

Surface Finish
Powder Coated

Thickness
1.6mm / 2.0mm

Way
3 Way / 4 Way

Know more

10 to 320 kva AMF Panel With Battery Charger

MOQ : 1 Piece

Application
DG Set, Power Control, Industrial

Base Material
Other, CRCA Sheet Metal

Cabinet Material
Mild Steel

Components
MCB, MCCB, Relays, Contactor, Battery Charger, Indicators

Connectivity Type
Terminal Connections

Control System
Automatic

Cooling System
Natural Air Cooling

Cover Material
Other, Powder Coated Sheet

Current Rating
10A to 400A

Dimension (L*W*H)
As per client requirement

Display Type
Other, LED/Analog Meters

Features
Auto/Manual Selection, Phase Sequence Correction, Generator/Mains Changeover, Battery Charging Facility

Frequency (MHz)
50 Hz

IP Rating
Ip54

Material
Other, Mild Steel (MS)

Maximum Output Current
400A

Operating Voltage
415V AC

Panel Type
Automatic Mains Failure (AMF) Panel

Product Type
Other, AMF Panel with Battery Charger

Protection Class
Class I

Protection Level
Other, Overload, Short Circuit, and Earth Fault

Rated Current
10 kVA to 320 kVA

Rated Insulation Voltage
690V

Rated Operation Voltage
415V

Rated Voltage
415V AC

Standard
IEC 61439, IS 13947

Surface Color
Other, Grey

Surface Finish
Powder Coated

Thickness
1.6 mm to 2.0 mm

Way
3/4 Way

Know more

400 to 1250 kva AMF Panel

MOQ : 1 Piece

Application
DG Synchronization / Power Backup Automation

Base Material
Other, Mild Steel Sheet

Cabinet Material
CRCA Sheet Steel

Components
MCB, MCCB, ACB, Relays, Contactors, CT/PT, Digital Meter, AMF Controller

Connectivity Type
Ethernet/RS485/Modbus (Optional)

Control System
Microprocessor Based / PLC Optional

Cooling System
Natural Air / Forced Air (optional)

Cover Material
Other, Powder Coated Steel

Current Rating
400A to 1250A

Dimension (L*W*H)
Customized (Typical: 2200mm x 1600mm x 600mm)

Display Type
Other, Digital LED / LCD

Features
Auto/Manual Operation, Generator Start/Stop, Mains-Fail Detection, Easy Maintenance, Fault Indication, Emergency Stop, Programmable Logic

Frequency (MHz)
50/60 Hz

IP Rating
Other, IP42 / IP54

Material
Other, Mild Steel (MS)

Maximum Output Current
2000A

Operating Voltage
380-440V AC

Panel Type
Floor Mounted

Product Type
Other, Automatic Mains Failure (AMF) Panel

Protection Class
Class I

Protection Level
Other, IP42 / IP54

Rated Current
400A to 2000A

Rated Insulation Voltage
690V

Rated Operation Voltage
415V

Rated Voltage
415V AC

Standard
IEC 61439/IS 8623

Surface Color
Other, RAL 7035 (Light Grey)

Surface Finish
Powder Coated

Thickness
1.6mm to 2.5mm

Way
3/4 Way
